Summary -
In this topic, we described about the below sections -
Depreciation areas are grouped together, according to the requirements of a specific country or economic area into a chart of depreciation.vCharts of depreciation are used to manage various legal requirements for the depreciation and valuation of assets.
The charts of depreciation are country-specific and are defined independently of the other organizational units. Chart of Depreciation normally creates by taking an existing country-specific chart of depreciation as a reference.
Below is the process to create chart of depreciation with depreciation areas.

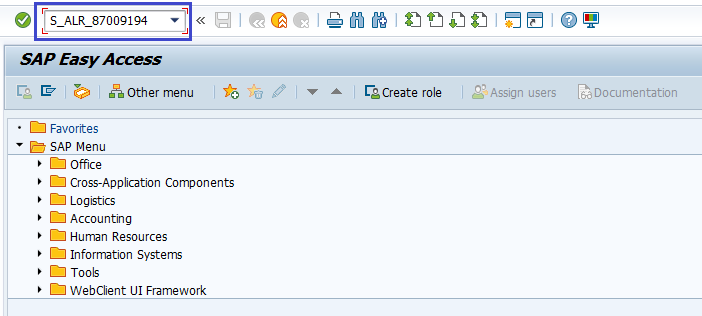

Step-1: Enter the transaction code S_ALR_87009194 in the SAP command field and click Enter to continue.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd.png)
(OR)

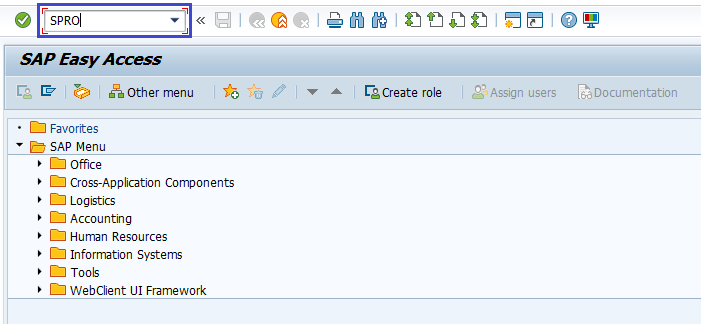

Enter the transaction code SPRO in the SAP command field and click Enter to continue.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd1.png)
Click on SAP Reference IMG.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd2.png)

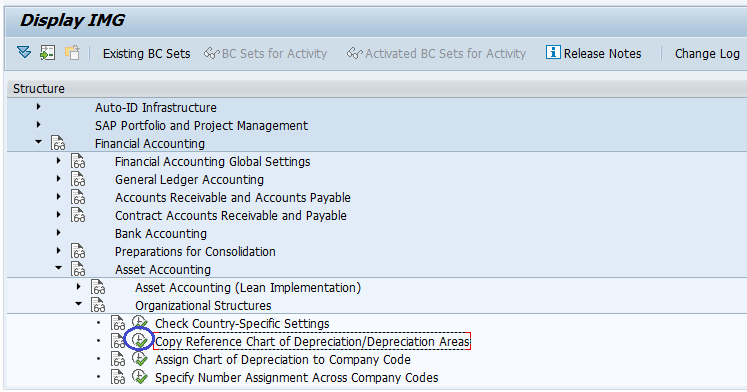

Expand SAP Customizing Implementation Guide → Financial Accounting → Asset Accounting → Organizational Structures → Copy Reference Chart of Depreciation/Depreciation Areas. Click on Execute.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd3.png)

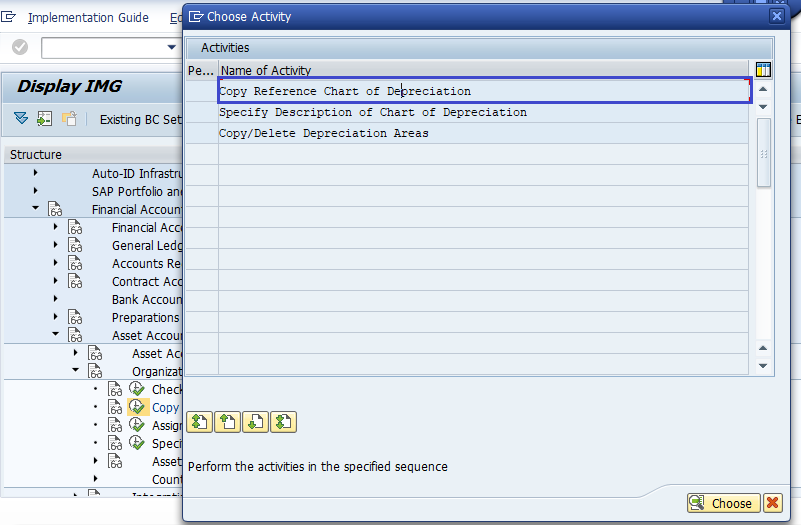

Step-2: In the next screen, choose an activity Copy Reference Chart of Depreciation and click on choose button.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd4.png)

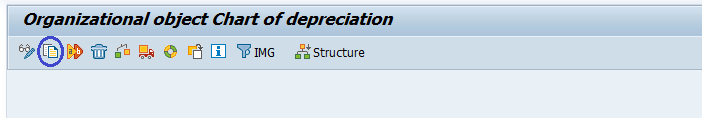

Step-3: In the next screen, click on Copy org.object button.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd5.png)

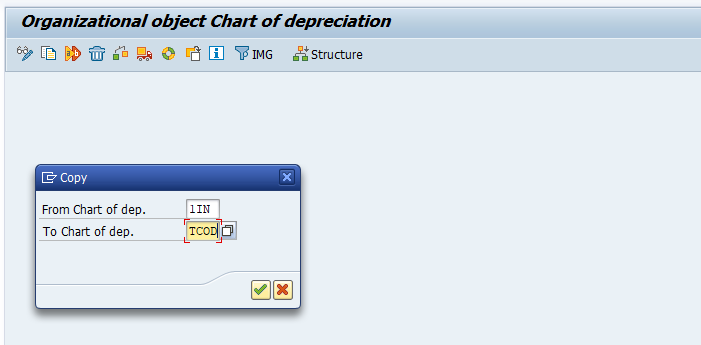

Step-4: New Activity screen gets opened. Select From Chart of Dep.,To Chart of Dep. and click on choose button.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd6.png)

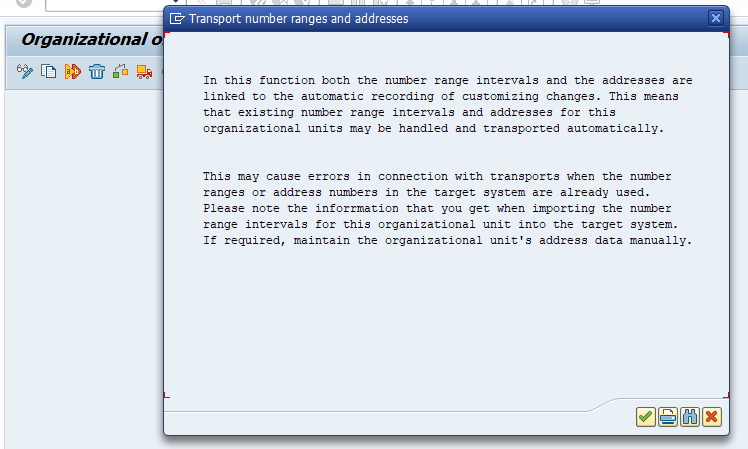

Step-5: The system is prompting with risks associated with this copying related to number ranges and addresses. Click on right mark to proceed.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd7.png)

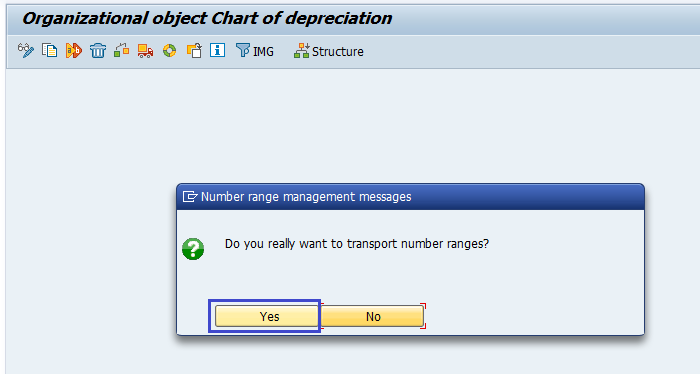

Step-6: New dialog box will appear with the below question. Click on Yes to proceed.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd8.png)
Step-7: It prompt for the Change Request. Click on right mark.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd9.png)
Step-8: A new dialog box appears with the below successful message. Click on right mark to proceed.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd10.png)

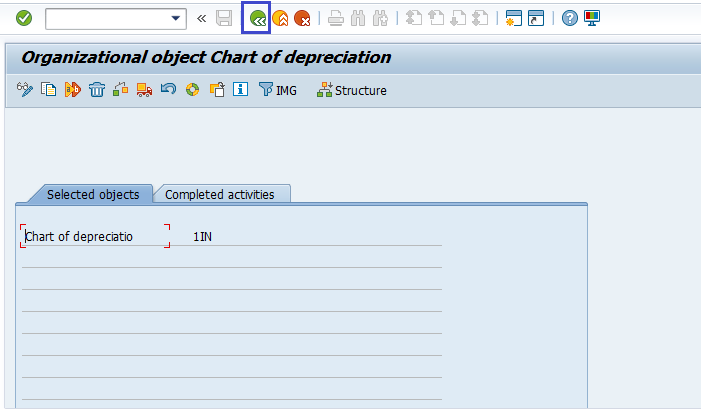

Step-9: Click on F3 or Back to get Activity screen gets opened.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd11.png)

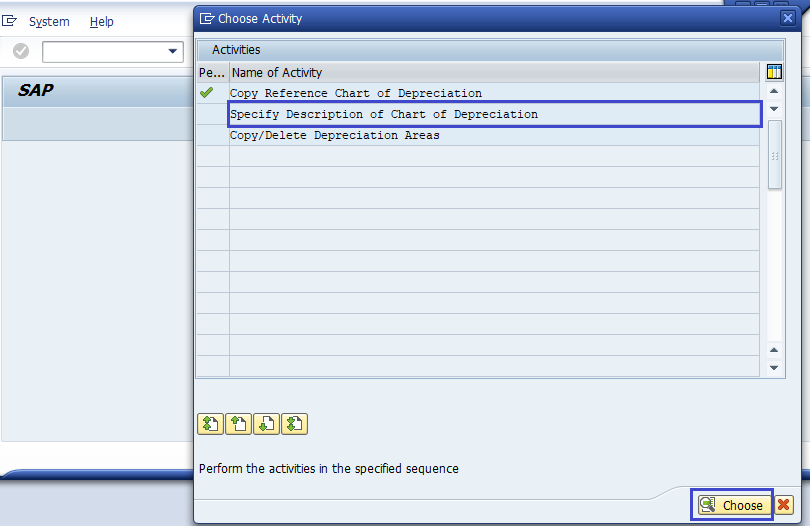

Step-10: Choose an activity Specify Description of Chart of Depreciation and click on choose button.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd12.png)
Step-11: Navigate to the new chart of depreciation and enter the Description.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd13.png)

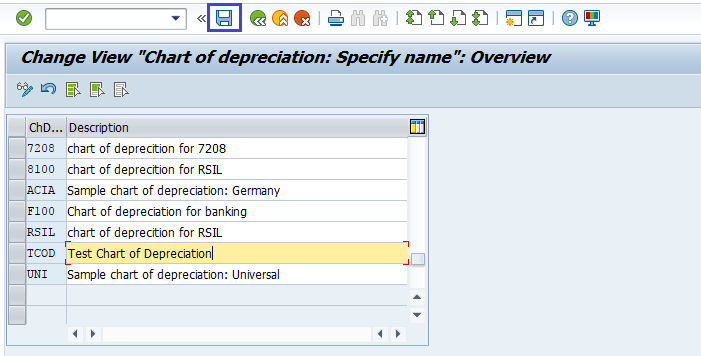

Step-12: Click on the Save button to save the changes.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd14.png)

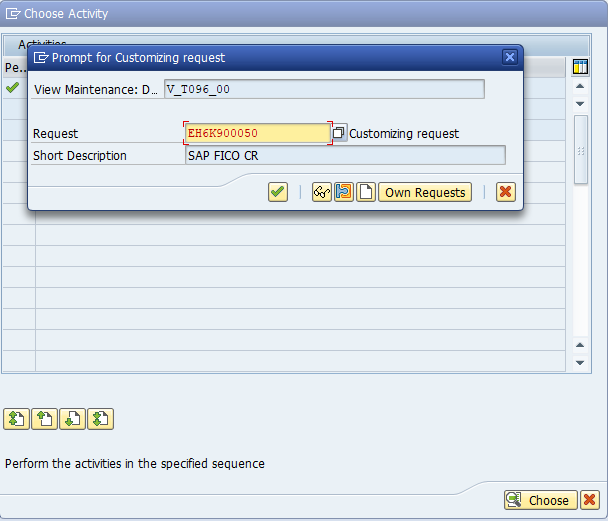

Step-13: It prompt for the Change Request. Create/Select the change request and Click on right mark to proceed.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd15.png)

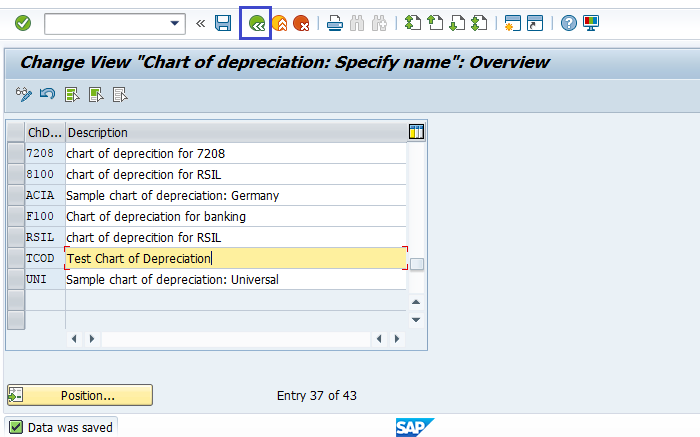

Step-14: Click on F3 or Back to get Activity screen gets opened.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd16.png)

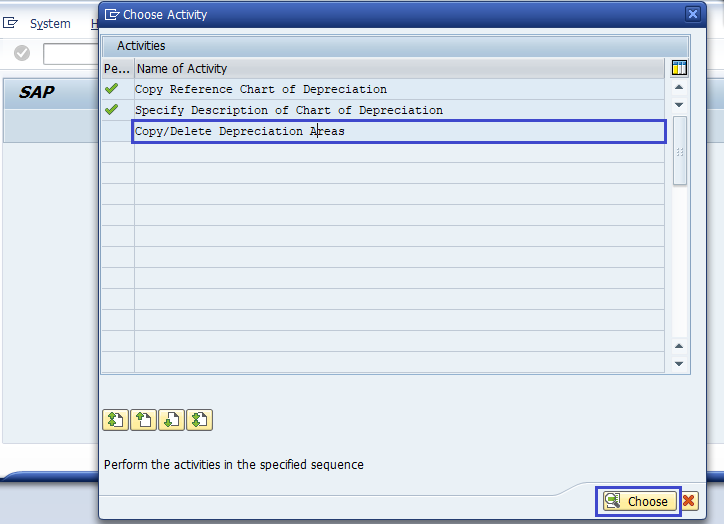

Step-15: Choose an activity Copy/Delete Depreciation Areas and click on choose button.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd17.png)

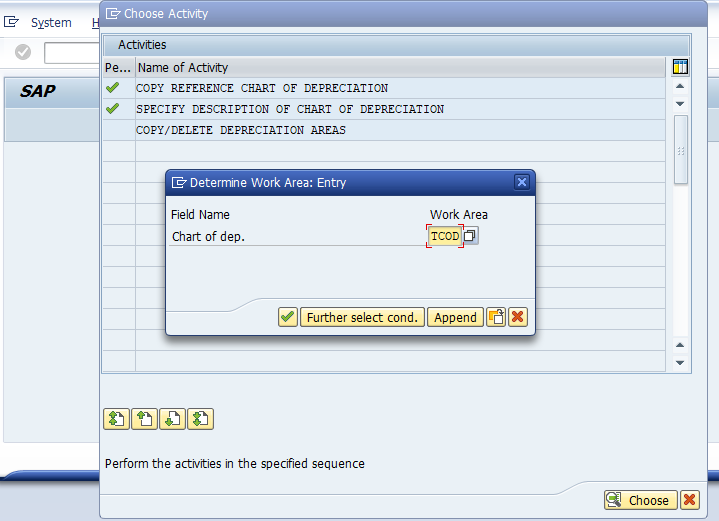

Step-16: Enter the Chart of Depreciation in the new dialog box opened and Click on right mark.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd18.png)

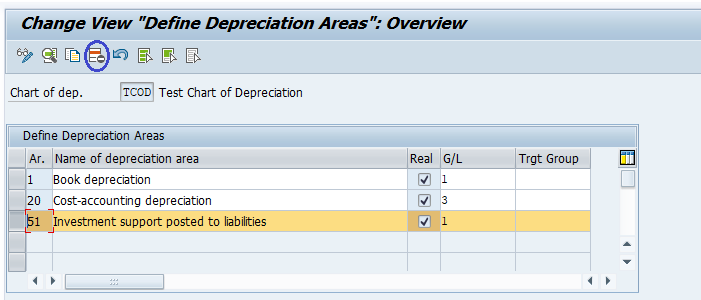

Step-17: If you want to delete any Depreciation area select like below and click on delete icon.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd19.png)

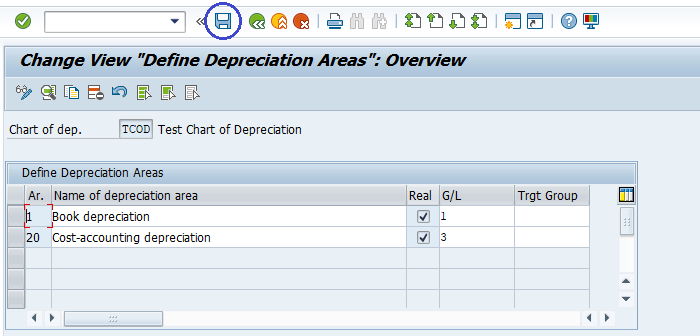

Step-18: Click on the Save button to save the changes.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd20.png)

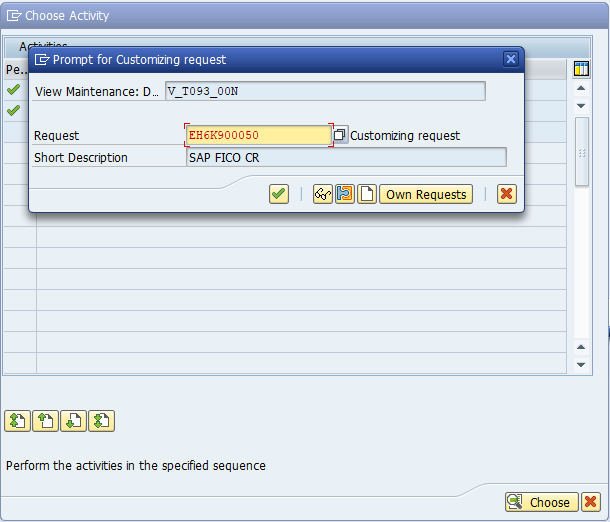

Step-19:It prompt for the Change Request. Create/Select the change request and Click on right mark to proceed.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd21.png)

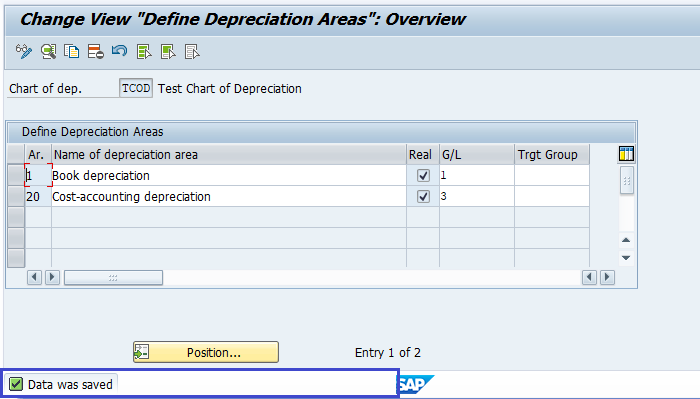

Step-20: Status bar displays the below message once the chart of depreciation created successfully.
![Copy Reference Chart of Depreciation or Depreciation Areas](img/create-cpcd22.png)
Technical Information: -
- Transaction Code: - S_ALR_87009194
- Navigation path: - SPRO → SAP Reference IMG → SAP Customizing Implementation Guide → Financial Accounting → Asset Accounting → Organizational Structures → Copy Reference Chart of Depreciation/Depreciation Areas
- Database Table: - T096, T096T, T093, T093T
